CIRCLIPS(1)

YAC. NO.

SPECIFICATION
A×B×C×D (mm)

DRAWNING TYPE

REMARK

AF1001

□(1.6 × 1.6) × 23.8 × 26.3

1

AF1002

□(1.6 × 1.6) × 28.2 × 32.0

1

AF1003

□(2.0 × 2.0) × 32.0 × 36.0

1

AF1004

□(1.6 × 1.6) × 22.6 × 24.5

1

AF1005

□(1.5 × 1.5) × 21.3 × 23.7

1

AF2001

□(1.5 × 1.5) × 22.9 × 26.5

2

AF2002

□(1.6 × 1.6) × 24.8 × 27.6

2

AF2003

□(1.6 × 1.6) × 27.4 × 31.0

2

AF2004

□(1.6 × 1.6) × 30.5 × 33.0

2

AF2005

□(1.8 × 2.3) × 33.6 × 38.0

2

AF2006

□(1.8 × 2.3) × 34.9 × 39.0

2

AF3001

□(1.2 × 1.2) × 26.8

3

AF3002

□(1.4 × 1.4) × 30.4

3

AF3003

□(2.7 × 2.7) × 29.1

3

AF3004

□(1.2 × 3.5) × 34.2

3

AF3005

□(1.4 × 2.8) × 33.2

3

AF3006

□(2.2 × 2.5) × 30.0

3

AF4001

1.8 × 25.3 × 18.0

4

AF4002

1.8 × 30.7 × 22.0

4

AF4003

1.6 × 27.2 × 21.0

4

AF5001

1.2 × 22.4

5

AF5002

1.4 × 25.8

5

AF5003

1.6 × 21.2

5

AF5004

1.6 × 22.9

5

AF5005

1.6 × 24.5

5

AF5006

1.6 × 25.7

5

AF5007

1.6 × 30.2

5

AF5008

1.8 × 25.6

5

AF5009

1.8 × 26.6

5

AF5010

1.8 × 29.0

5

AF5011

1.8 × 30.0

5

AF5012

1.8 × 36.2

5

AF5013

2.0 × 25.9

5

AF5014

2.0 × 27.8

5

AF5015

2.0 × 30.6

5

AF5016

2.0 × 34.0

5

AF5017

1.4 × 21.0

5

AF5018

1.4 × 20.8

5

AF5019

1.4 × 24.0

5

AF5020

2.0 × 33.0

5

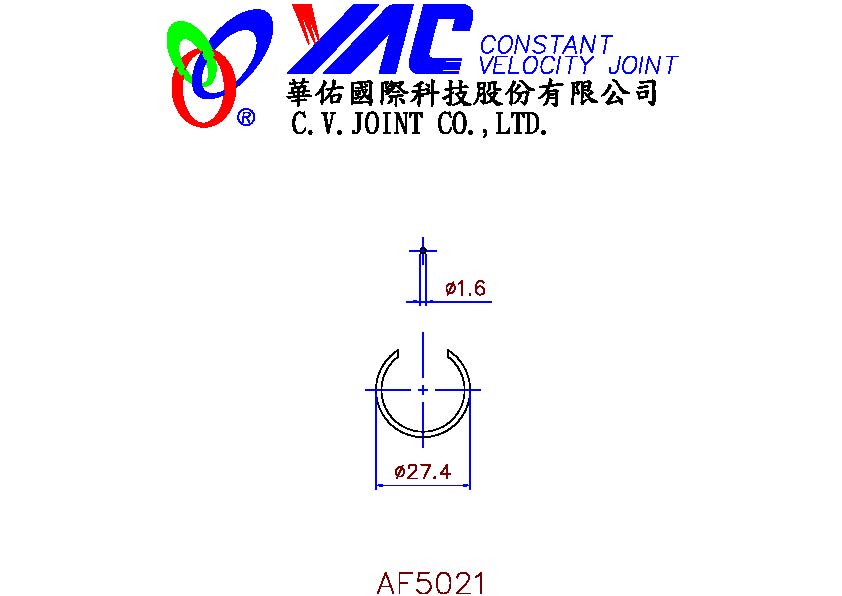

AF5021

1.6 × 27.4

5

AF5022

1.6 × 20.0

5

AF5023

1.6 × 22.0

5

AF5024

2.6 × 37.0

5

AF5025

2.0 × 24.0

5

AF5026

1.8 × 28.0

5

AF5027

2.2 × 23.0

5

AF5028

1.8 × 23.2

5

AF5029

1.4 × 21.8

5

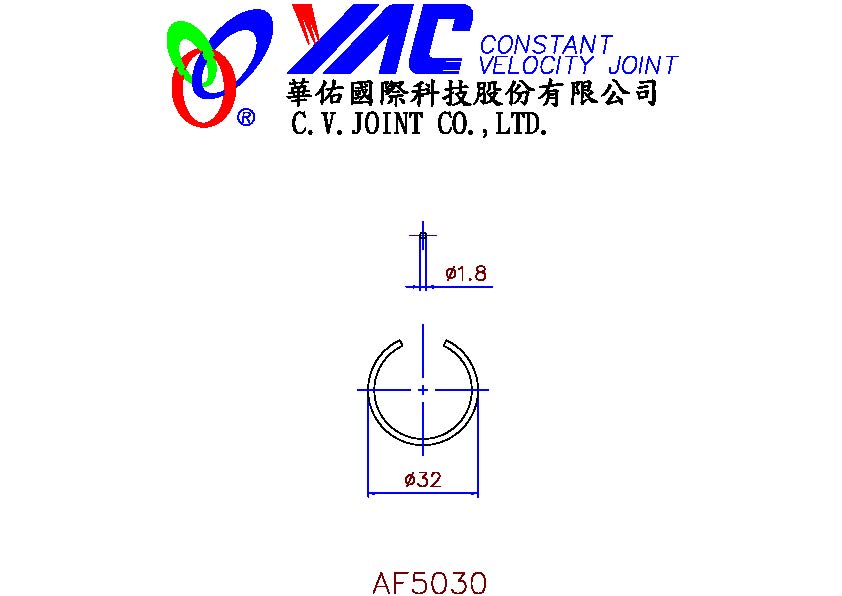

AF5030

1.8 × 32.0

5

AF5031

2.3 × 37.6

5

AF5032

1.8 × 31.2

5

AF5033

1.8 × 24.5

5

AF5034

2.5 × 34.5

5

AF5035

2.4 × 33.1

5

AF5036

2.2 × 31.0

5

AF5037

2.3 × 32.3

5

AF5038

2.6 × 35.5

5

AF6001

1.6 × 24.8 × 20.6

6

AF6002

1.6 × 27.8 × 25.0

6

AF6003

1.8 × 27.5 × 21.8

6

AF6004

1.6 × 24.0 × 21.0

6

AF6005

1.8 × 30.0 × 26.7

6

AF6006

2.0 × 30.0 × 26.0

6

AF9001

1.6 × 21.0

9

AF9002

1.6 × 23.0

9

AF9003

1.6 × 24.8

9

AF9004

1.8 × 24.0

9

AF9005

1.8 × 25.0

9

AF9006

1.8 × 26.0

9

AF9007

1.8 × 27.3

9

AF9008

2.0 × 25.0

9

AF9009

2.0 × 26.2

9

AF9010

2.0 × 27.1

9

AF9011

2.0 × 28.1

9

AF9012

2.0 × 29.1

9

AF9013

2.2 × 26.1

9

AF9014

2.2 × 28.0

9

AF9015

2.3 × 30.0

9

AF9016

2.3 × 31.0

9

AF9017

2.0 × 63.0

9

AF9018

2.0 × 76.0 × 57.0

9

AF9019

2.0 × 75.0 × 51.0

9

AF9020

1.8 × 53.0

9

AF9021

1.8 × 65.5 × 52.4

9

AF9022

1.8 × 60.0 × 47.9

9

AF9023

1.8 × 70.0 × 56.4

9

AF9024

2.3 × 30.2 × 26.0

9

AF9025

2.0 × 22.5

9

AF9026

1.8 × 72.0

9

AF9027

1.6 × 24.0

9

AF9028

1.6 × 26.4

9

AF9029

1.6 × 19.3

9

AF9030

1.8 × 82.0

9

AF9031

1.8 × 54.5

9

AF9032

2.3 × 41.5

9

AF9033

□(2.3 × 2.5) × 28.0

9

AF9034

1.4 × 19.4

9

AF9035

1.6 × 28.7

9

AF9036

□(1.15 × 5.7) × 132.0

9

AF9037

□(2.0 × 4.75) × 72.5

9

AF9038

1.8 × 79.0

9

AF9039

1.4 × 23.0

9

AF9040

1.4 × 21.5 × 15.0

9

AF9041

1.8 × 58.5

9

AF9042

1.6 × 23.5

9

AF9043

1.6 × 25.1

9

AF9044

2.8 × 24.4 × 30.8

9

AF9045

2.3 × 32.5 × 25.0

9

AF9046

1.5 × 83.0 × 59.0

9

AF9047

2.5 × 40.8

9

AF9048

2.3 × 36.8

9

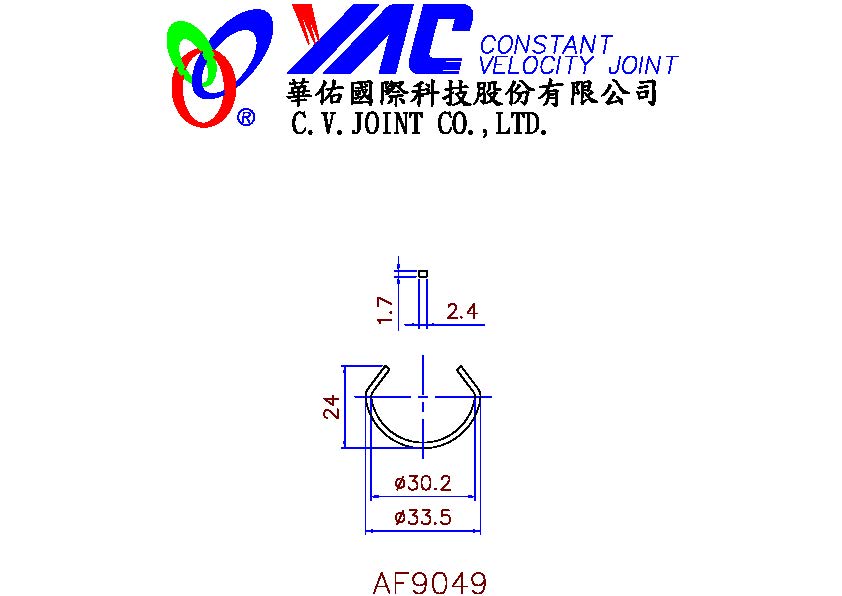

AF9049

□(2.35 × 2.35) × 33.5 × 24.0

9

AF9050

2.3 × 32.0 × 30.0

9

AF9051

2.0 × 30.0 × 27.5

9

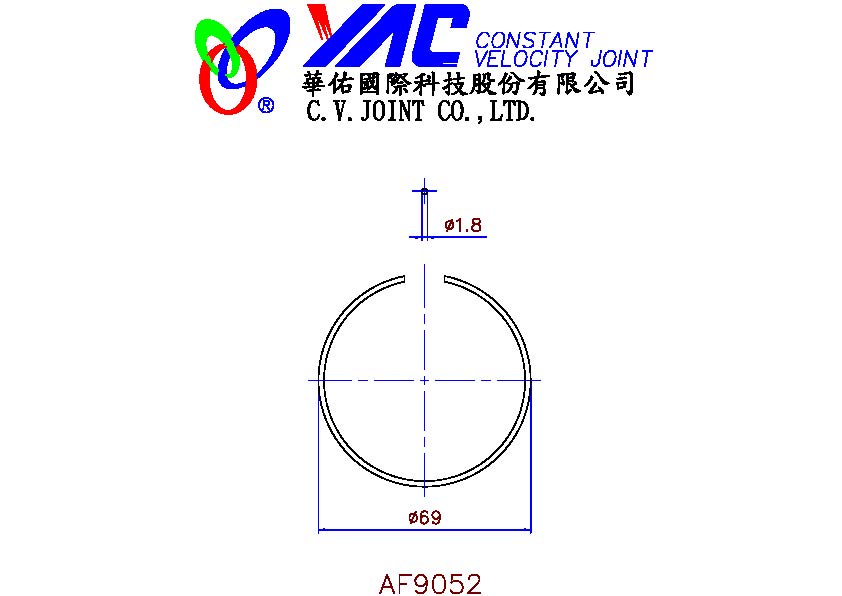

AF9052

1.8 × 69.0

9

AF9053

2.0 × 30.5 × 22.0

9

AF9054

2.0 × 28.5 × 25.3

9

AF9055

2.0 × 29.8

9

AF9056

1.8 × 66.0

9

AF9057

1.6 × 22.5

9

AF9058

2.6 × 34.0 × 24.8

9

AF9059

2.0 × 23.0

9

AF9060

1.8 × 107.0

9

AF9061

2.0 × 31.5 × 25.5

9

AF9062

1.4 × 20.6

9

AF9063

1.6 × 27.2 × 18.5

9

AF9064

□(3.3 × 4.0) × 34.4 × 42.4

9

AF9065

2.0 × 32.8 × 29.5

9

AF9066

2.0 × 31.5

9

AF9067

1.8 × 22.5

9

AF9068

1.8 × 36.7

9

AF9069

2.0 × 27.7 × 26.0

9

AF9070

1.8 × 22.0

9

AF9071

1.8 × 27.0 × 22.0

9

AF9072

□(2.45 × 2.45) × 24.2 × 27.4

9

AF9073

□(2.5 × 2.5) × 26.3 × 29.5

9

AF9074

1.8 × 23.6

9

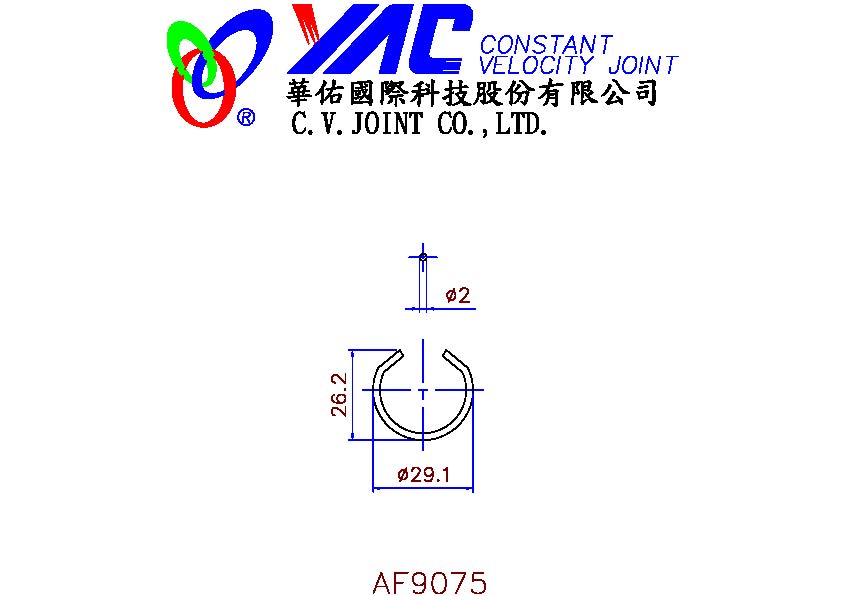

AF9075

2.0 × 29.1 × 26.2

9

AF9076

□(1.6 × 2.3) × 29.8 × 22.5

9

AF9077

2.2 × 29.1

9

AF9078

2.3 × 27.3 × 21.8

9

AF9079

1.8 × 27.0 × 13.0

9

AF9080

□(1.6 × 2.2) × 27.8 × 23.3

9

AF9081

□(1.6 × 2.5) × 31.9

9

AF9082

□(1.6 × 2.5) × 27.5 × 23.3

9

AF9083

□(1.5 × 2.5) × 30.0 × 27.0

9

AF9084

2.0 × 26.2 × 21.5

9

AF9085

1.6 × 26.0 × 20.0

9

AF9086

□(1.6 × 2.3) × 27.5 × 23.0

9

AF9087

2.0 × 35.2 × 21.0

9

AF9088

1.8 × 70.0 × 65.0

9

AF9089

□(1.6 × 2.5) × 31.0

9

AF9090

2.0 × 27.2 × 21.5

9

AF9091

1.8 × 30.0 × 24.5

9

AF9092

□(2.0 × 2.7) × 38.6

9

AF9093

1.8 × 75.5

9

AF9094

□(1.6 × 2.5) × 35.0 × 26.0

9

AF9095

2.0 × 23.4

9

AF9096

1.8 × 31.0 × 21.6

9

AF9097

2.0 × 29.6 × 7.0

9

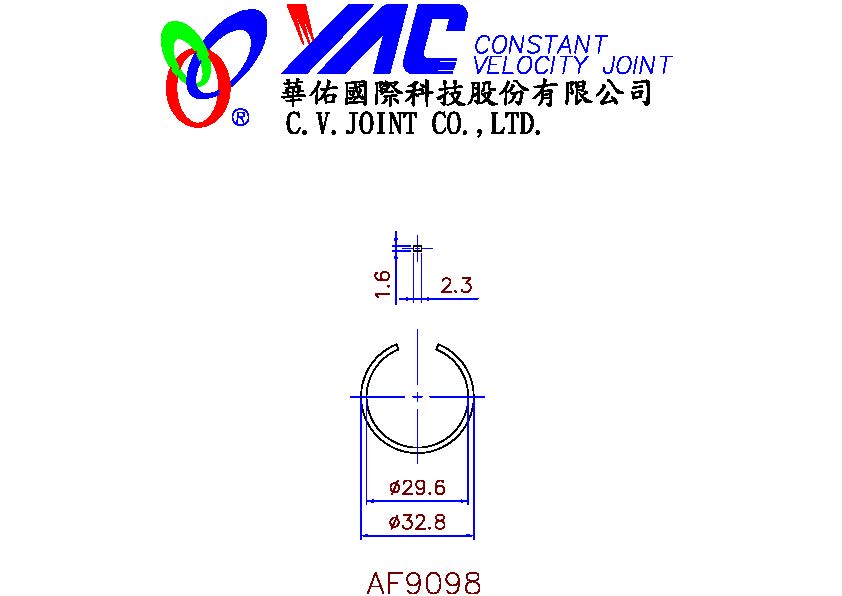

AF9098

□(1.6 × 2.3) × 32.8

9

AF9099

□(1.6 × 2.5) × 27.0

9

AF9100

□(1.6 × 2.5) × 29.7 × 24.0

9
