TOYOTA

Inboard C.V.Joint	Car	Engine	AT / MT	Year	A	B	C	D
YAC No.	Model		AT / MT	Year	A	B	C	D
ALTIS

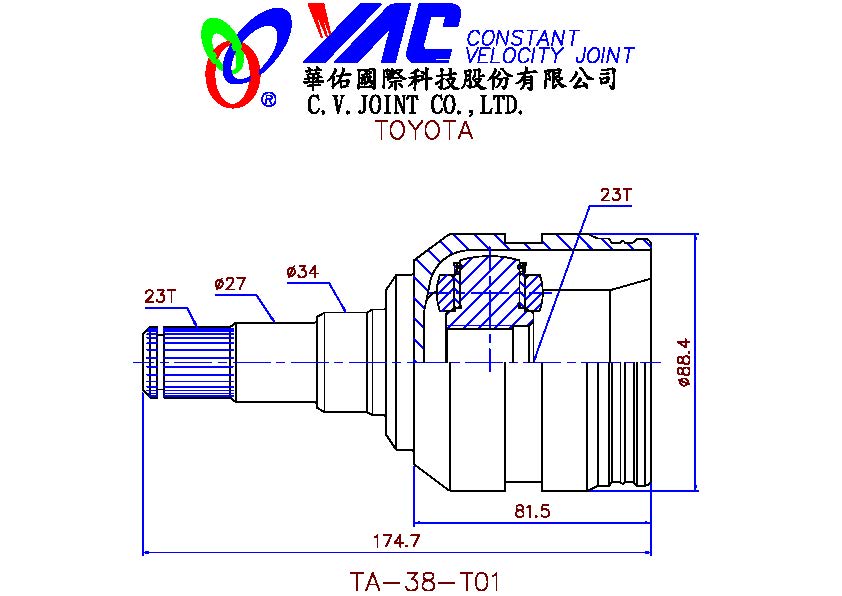

TA-38-T01	1.6 R/L			01-	23	34	23	174.7
TA-38-T02	1.6 R/L				23	34		177
TA-38-T03	1.8 R/L				20	35		179
TA-38-T04	1.8			08-				178.5
TA-109-T03				12'~			32	182
TA-131-T01				09-			25	181.7
TA-141-T01	R			19-	24	40	32	193
TA-141-T02	L					50		175
TA-141-T03	Hybrid	1.8R		19-		40		193
TA-151-T01	1.8			19-	20	35	30	177.7
CAMRY
TA-05-T02	2.2 L				20	35	32	452
TA-41-T01	2.0 L				24	50	26	183.5
TA-41-T02	2.0 R					40	27	478
TA-41-T03	2.0 R			02-		40		474
TA-41-T04	2.0 L					50		179.5
TA-50-T01	3.0 R					40	26	486

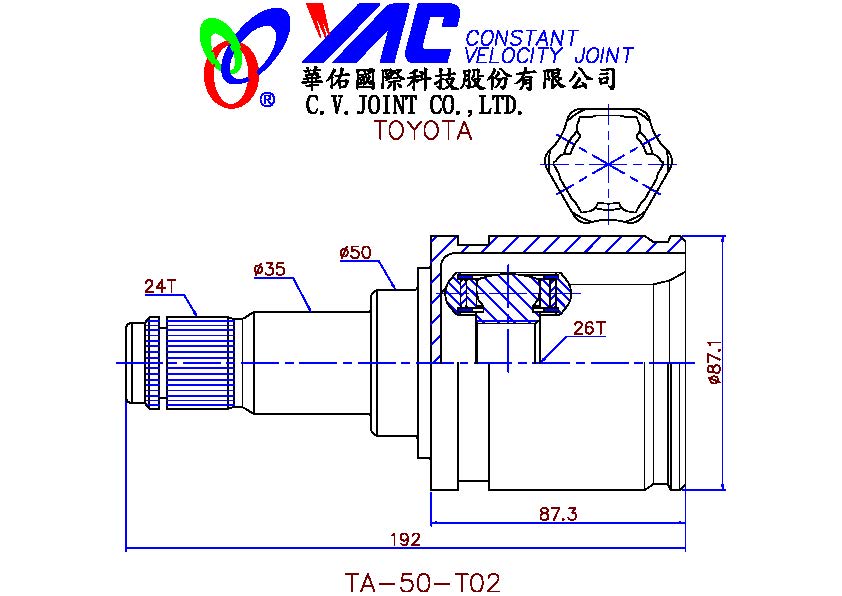

TA-50-T02	3.0 L					50		192
TA-52-T01	2.4 R			06-		40		478
TA-52-T02	2.4 L			06-		50		180
TA-58-T01	3.0 R			02-		40	27	486

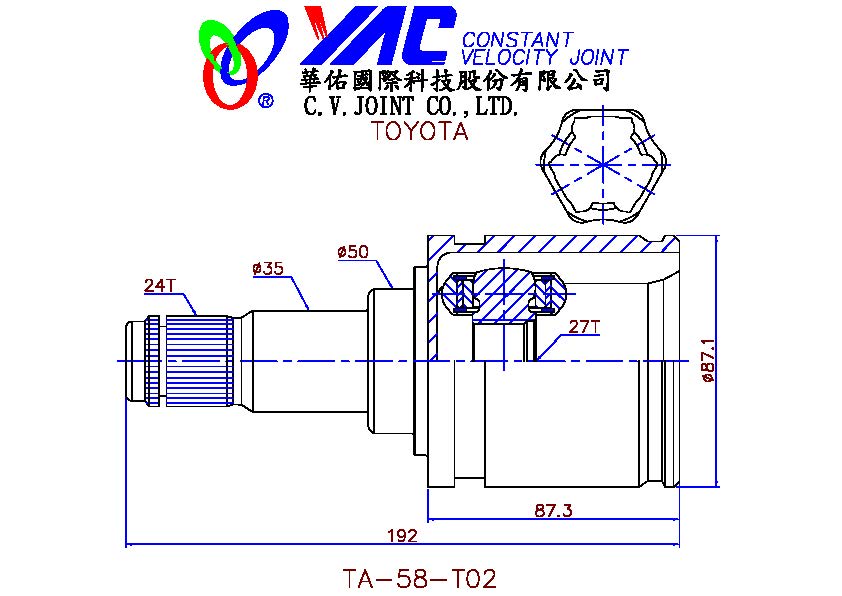

TA-58-T02	3.0 L			02-		50		192
TA-85-T01	3.5 R					40		483.2
TA-85-T02	3.5 L					50		174
TA-123-T02	2.0 L			13-		50	32	175.7
COROLLA
TA-02-T02	1.8				23	34	23	173
TA-02-T03				93-	23	34	29	187.3
TA-05-T04	1.8			04-	20	35	23	179
TA-107-T01		South Africa		09-	23	34	23	173
TA-108-T01							25	178.8
TA-116-T01							23	163.5
TA-121-T01		Turkey	R	14-	20	35	23	179
TA-121-T02	L	Turkey		14-			24	181.7
TA-131-T01				13-			25	181.7
TA-147-T01				21-			25	179
CORONA
TA-03-T01	2.0 R				20	35	30	463.5
TA-05-T01	2.0 L						32	179
TA-05-T03	2.0 L						30	179
FT86
DTA-126-T01	2.0 Rear			13-	30	43	32	184.5
HIACE
TA-115-T01	2.7 R/L	Solemio		97-	-	-	24	82
HILUX
TA-71-T01		Vigo 4WD			30	47	29	192
TA-91-T01	R	Gun125/Gun126		15-	30	47	30	201.5
LEXUS
TA-122-T01	R	CT200			24	40	25	190.7
TA-122-T02	L	CT200			24	50	25	172
PICK UP
TA-18-66	R / L	T-100			-	-	24	96
TA-18-T01	4WD	Pickup		86-95				83
		4 Runner
		T-100 4WD		93-98
RAV 4
TA-95-T01	2.0R			05-	24	40	27	471.5
SIENTA
TA-120-T01	1.5 LH				23	34	30	174.5
TERCEL
TA-01-T01	1.5 R / L				23	34	23	175
VIOS
TA-61-T01	1.5 R / L			04-	23	34	21	165.8
TA-61-T02					23	34	23	165.8
VITZ
TA-131-T01	1.8			07-	20	35	25	181.7
WISH
TA-41-T03	2.0 R			02-	24	40	27	474
TA-41-T04	2.0 L			02-		50	27	179.5
TA-109-T01	2.0 R			13-		40	32	471.8
TA-109-T02	2.0 L			13-		50	32	173.9
YARIS
TA-131-T01	1.8			7	20	35	25	181.7

TA-01-T02	1.6	NA			23	34	29	175
	1.8	LA
	2.0R / L	Y
TA-02-T01		NCP 10				38	19	159.7
TA-04-T01	2.0 W / R	SXV			20	35	30	443.5
TA-10-66	R	VCV 10			-	(110)	34	32
TA-73-T01					23	40	23	154
