| Outboard C.V.Joint | Car | Engine | AT/MT | Year | A No. of Outer Teeth |
B Seal Dia mm |
C No. of Inner Teeth |
D Thread |
F Internal Groove |
G Overall Height |
ABS No. of ABS Teeth |
|---|---|---|---|---|---|---|---|---|---|---|---|
| YAC No. | Model | ||||||||||
| CHEROKEE-GRAND CHEROKEE -WAGONEEER | |||||||||||
| CR-09 | Cherokee | Selec-Trac&ABS | 86-89 | 27 | 69.5 | 32 | 24/1.5 | F1 | 180 | 54 | |
| Grand Cherokee | 4WD Selec-Trac&ABS | 91-96 | |||||||||
| Wagoneer | 84-96 | ||||||||||
| CR-10 | 4WD | All Model ABS | 71.1 | 182 | |||||||
| CR-36 | 65.5 | 178 | 48 | ||||||||

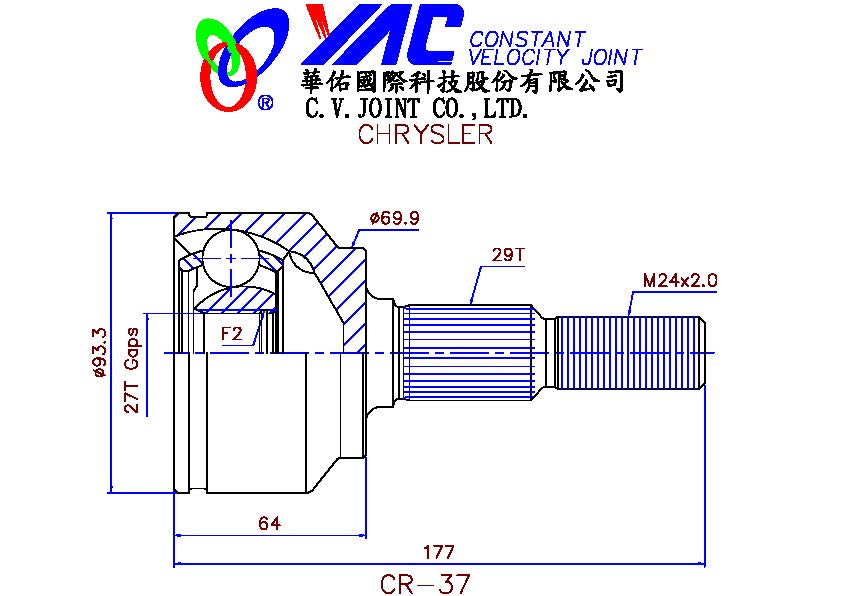

| CR-37 | 05-10 | 29 | 69.9 | 27 | 24/2.0 | F2 | 177 | ||||
| CR-38 | 11-17 | 32 | 71.8 | 26 | 22/1.5 | 176.5 | |||||
| CR-39 | 3.0/5.7/6.1 | Grand Cherokee | 05-10 | 29 | 69.9 | 36 | 24/2.0 | F1 | 171 | ||

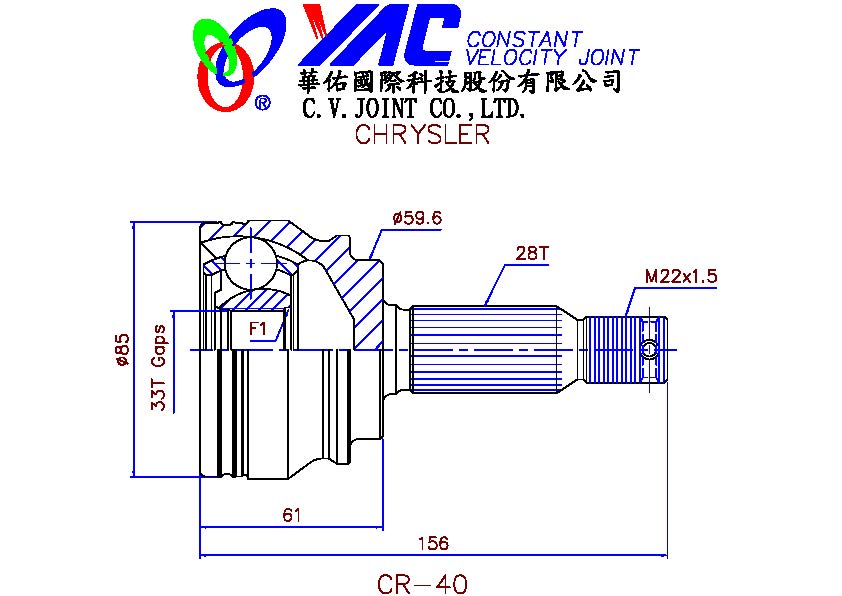

| CR-40 | Patriot | 07-12 | 28 | 59.6 | 33 | 22/1.5 | 156 | ||||
